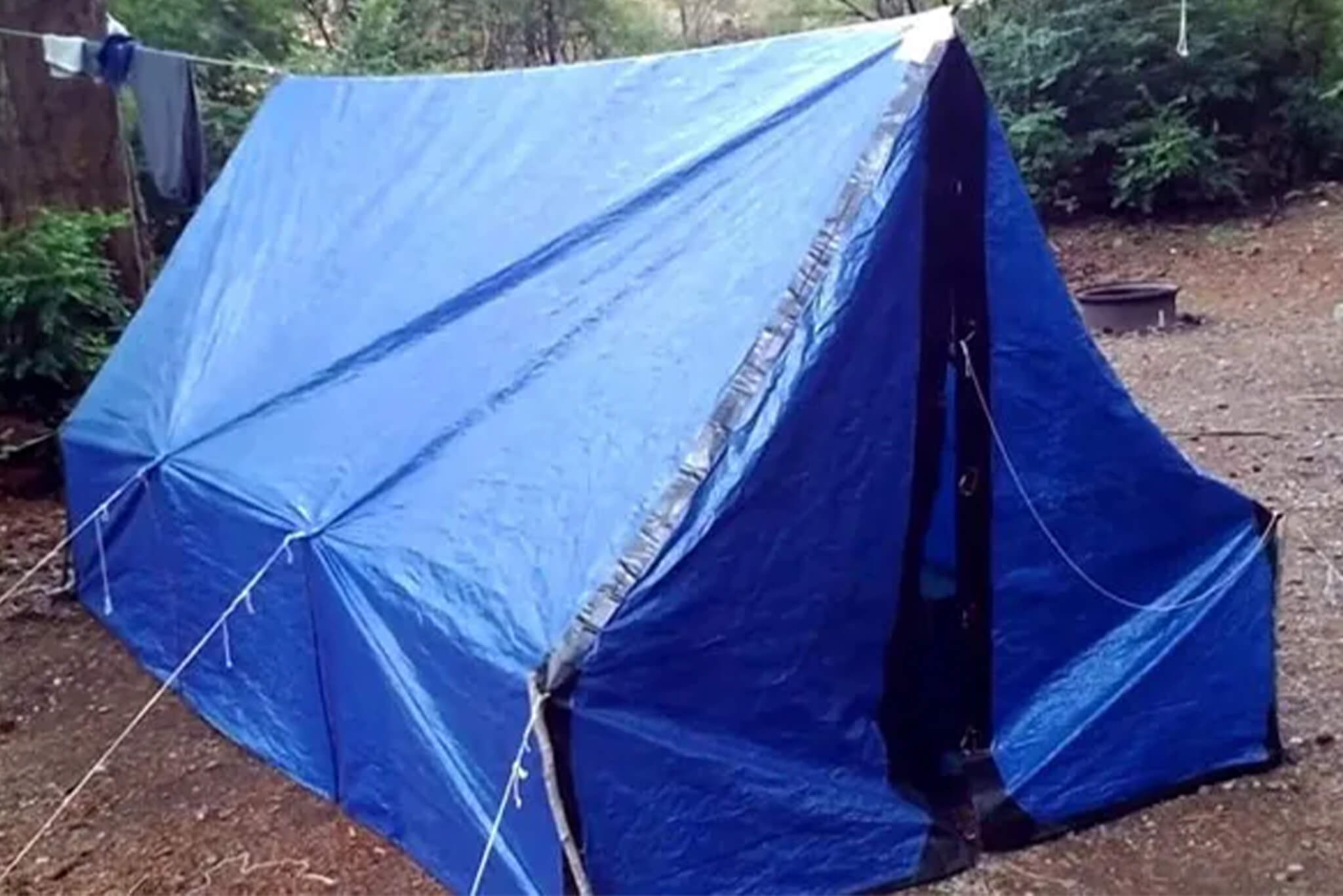

PLASTIC SHEETING AS PER UNHCR/UNICEF

• As per UNHCR/UNICEF standard.
• All our materials are UV-proof, waterproof, rot proof and fire retardant (optional)*
• Marking and logo customized to your requirements.
• Designed for long outdoor use in all climates.
• Highly recommended for family shelter protection

TECHNICAL SPECIFICATIONS

• Size :Reinforced plastic tarpaulin in 4m x 5m sheet or 4m x 50m roll.
• Material :Made of woven high density black polyethylene (HDPE) fibers. warp x weft 12/14 per square inch, laminated on both sides with low density polyethylene (LDPE) coating. With Reinforced rims by heat sealing on all sides (or 2 sides heat sealing and 2 sides double stitching), and nylon ropes in hem, with aluminium eyelets on 4 sides every 100 cm (±5 cm) Centre to Centre .
• Weight :190 gsm ± 20 g/m² .
• Tensile strength :Min 600N both directions warp and weft (BS 2576, 50mm grab test or equivalent)
• Tear strength :Min 100N both directions (BS 4303 wing tear or equivalent)
• UV resistance : 5% loss on mechanical strength after 1500 UV exposure
• Welding:Only 1 welding lengthwise.
• Eyelets :Aluminum reinforcement eyelets or equivalent on 4 sheet sides of single sheets at 100cm (±5 cm) Centre to Centre, providing very strong fixation points

PLASTIC SHEETING AS PER IFRC/ICRC/IOM STANDARD

• As per ICRC/IFRC/MSF/Oxfam standard.
• All our materials are UV-proof, waterproof, rot proof and fire retardant (optional)*
• Marking and logo customized to your requirements.
• Designed for long outdoor use in all climates
• Highly recommended for family shelter protection

TECHNICAL SPECIFICATIONS

• Size :Reinforced plastic tarpaulin in 4m x 5m sheet or 4m x 60m roll.
• Material :Woven high-density polyethylene (HDPE) black fibers fabric, fabric laminated on both sides with white low density polyethylene (LDPE) coating, reinforced with 6 bands of 75 mm width woven black HDPE fibers fabric and coated with grey LDPE on the outside. Pre-punched 8mm holes on the 2 side bands at 0.1m +/-10% intervals, positioned in the Centre of the bands (only the reinforcement bands are pre-punched, not the tarpaulin itself).
• Weight :190 ± 20g under ISO 3801 (equivalent to min 170 to 210 gsm max) .
• Tensile strength :Min 500N, 15-25% elongation in warp and weft in plain sheet under ISO 1421-1
• Tear strength :Min 100N under ISO 1421outside of the Reinforcement Bands.
• Reinforcement bands :Min 700N as per ISO 1421-1, pulling lengthwise in a pre-punched 8mm hole with a hook of 8 mm wire diameter, at 200mm from the end of the band. UV resistance 80% of original value and not less than 665N.
• UV resistance :After 1500 hours UV under ASTM G53/94 (UVB 313 nm peak) minimum 80% of original value of the actual product and not less than 475N
• Welding:Only 1 welding lengthwise.
